DEDB/Diethylene glycol dibenzoate
Other Names:
Polyol ester of benzoic acid,Diethylene glycol dibenzoate, DEGDB, DOP Substitute
M.F:C18H18O5
CAS:120-55-8
EINECS:204-407-6
Product performance:

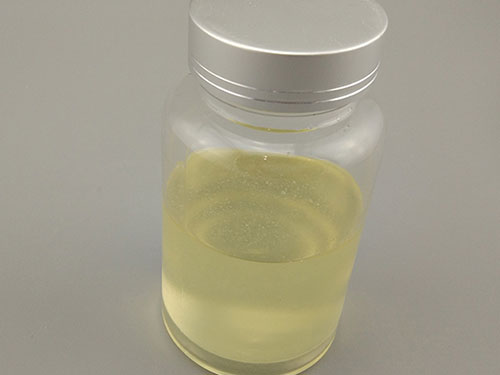

DEDB is colorless or pale yellow transparent oily liquid, water-insoluble, soluble in aromatic
hydrocarbons, ketones and ethers, and has good compatibility withpolyvinyl chloride,
ethylene -vinyl acetate copolymer, poly vinyl acetate, polymethylmethacrylate,
polyvinylbutyral, nitrocellulose, and ethyl cellulose, etc.
Product quality index:
Item | First grade | Second grade |
Chroma(APHA) ¡Ü | 50 | 60 |
Ester % ¡Ý | 99.5 | 90.0 |
Density(20¡ãC)g/ | 1.120-1.126 | 1.172-1.78 |
Acidity(as benzene dicarbonic acid) % ¡Ü | 0.01 | 0.02 |
Flash Point ¡ãC ¡Ý | 195 | 192 |
Loss on heat(125¡ãC,2 hours)% ¡Ü | 0.3 | 0.5 |
Chroma after heat treatment | 80 | 100 |
NO | Items of analysis | Specification |
1 | APPEARANCE | transparent oily liquid, free of particulate impurities |
2 | PURITY(BENZOIC ESTERS) (% ) | 99.5 Min |
3 | COLOR (apha) | 100 MAX |
4 | water (%) | 0.1 MAX |
5 | ACIDITY (as Benzoic acid) (%) | 0.1 MAX |
6 | Hydroxyl No | 13 max |
Specification:
Typical Properties:
NO | Items of analysis | Specification |
1 | Boiling Point(5mmHg,¡ãC) | 240 |
2 | Freezing Point(¡ãC) | 16 |
3 | FLASH POINT(TCC,¡ãC) | 150 Min |
4 | REFRACTIVE INDEX (25¡ãC) | 1.5425-1.5430 |
5 | SPECIFIC GRAVITY (25¡ãC) | 1.170-1.180 |
6 | Viscosity(Brookfield,25¡ãC) | 75 cps |
7 | VOC CONTENT(% ) | 2.5MAX |
8 | ODOR | MILD ESTER-LIKE |

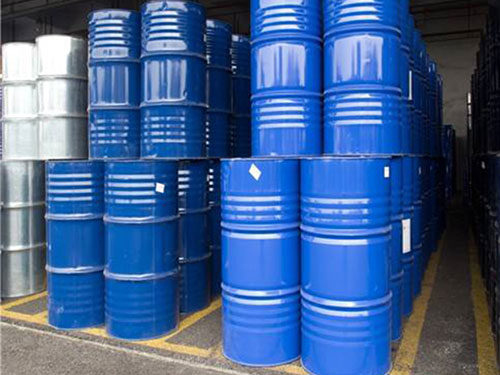

Packing:
----Iron Drums 200kgs/drum,16Tons/20Ft container
----Flexibag 22Tons/20Ft container
----IBC tank 1Ton/IBC 22Tons/20Ft container
Product application:
DEDB is an environmentally friendly plasticizer with the characteristics of strong solubility, good
compatibility, low volatility, resistant to oil, water, light, pollution etc. It is suitable for processing
PVC flooring material, plastisol, artificial leather, cable material, soft and hard pipe, shoes material,
rubber strips, synthetic rubber, and paint, printing ink, etc. It has a better plasticized effect if it is
used together with DOP or DBP, and has greatly achieved the purpose of reducing cost.
